激光功率对激光熔覆Stellite 6合金涂层微观组织及耐磨性能的影响

张维; 尚宪和; 胡明磊; 隋飞; 贺星; 周梁栋; 倪晓晴; 张亮; 孔德成; 董超芳

doi:10.19591/j.cnki.cn11-1974/tf.2023080003

激光功率对激光熔覆Stellite 6合金涂层微观组织及耐磨性能的影响

张维^{1, 2, 3},
尚宪和¹,
胡明磊¹,
隋飞^{2, 3},
贺星^{2, 3},
周梁栋⁴,
倪晓晴⁴,
张亮⁴,
孔德成⁵,
董超芳^{2, 3, ,}

1.
中核核电运行管理有限公司, 嘉兴 314300
2.
北京科技大学新材料技术研究院, 北京 100083
3.
北京科技大学北京材料基因工程高精尖创新中心, 北京 100083
4.
上海材料研究所3D打印材料工程技术研究中心, 上海 200437
5.
上海交通大学材料科学与工程学院, 上海 200240

详细信息

通讯作者:
董超芳: E-mail: cfdong@ustb.edu.cn

中图分类号: TG174.44；TF125
计量
- 文章访问数: 156
- HTML全文浏览量: 25
- PDF下载量: 40
出版历程
- 收稿日期: 2023-08-10
- 网络出版日期: 2023-11-05
- 刊出日期: 2025-04-27

Effect of laser power on microstructure and wear resistance of laser cladding Stellite 6 alloy coatings

ZHANG Wei^{1, 2, 3},
SHANG Xianhe¹,
HU Minglei¹,
SUI Fei^{2, 3},
HE Xing^{2, 3},
ZHOU Liangdong⁴,
NI Xiaoqing⁴,
ZHANG Liang⁴,
KONG Decheng⁵,
DONG Chaofang^{2, 3, ,}

1.
China Nuclear Power Operation Management Co., Ltd., Jiaxing 314300, China
2.
Institute for Advanced Materials and Technology, University of Science and Technology Beijing, Beijing 100083, China
3.
Beijing Advanced Innovation Center for Materials Genome Engineering, University of Science and Technology Beijing, Beijing 100083, China
4.
Shanghai Engineering Research Center of 3D Printing Materials, Shanghai Research Institute of Materials, Shanghai 200437, China
5.
School of Materials Science and Engineering, Shanghai Jiao Tong University, Shanghai, 200240, China

More Information

Corresponding author:
DONG Chaofang: E-mail: cfdong@ustb.edu.cn

摘要

摘要:
采用激光熔覆技术在0Cr17Ni4Cu4Nb不锈钢表面制备Stellite 6合金涂层，利用光学显微镜、扫描电子显微镜、能谱仪、电子背散射衍射分析仪、激光共聚焦显微镜等表征涂层的微观组织，并测试了试样的硬度和耐磨性能。结果表明，不同激光功率制备的涂层均无明显气孔、裂纹等缺陷，且与基体有良好的冶金结合。涂层组织主要由底部的柱状晶、中部的树枝晶以及顶部的等轴枝晶组成。涂层硬度（HV 420～510）显著高于基体（HV 206），硬度沿涂层顶部到基体逐渐降低。激光功率为1400 W的样品组织最细小均匀，同时枝晶间的硬质相（碳化物）较多，表现出最高的硬度。经过磨损实验测试，所有样品表面均出现沿滑动方向平行的犁沟，无明显磨屑堆积的情况，属于磨粒磨损机制。激光功率为1400 W的样品摩擦系数最小，同时磨痕宽度（928.463 μm）最窄，磨痕深度（45.087 μm）最小，表现出最好的耐磨性能。
- 激光熔覆 /
- 激光功率 /
- Co基硬质合金 /
- 涂层 /
- 硬度 /
- 耐磨性能
Abstract:
Stellite 6 alloy coatings were prepared on 0Cr17Ni4Cu4Nb stainless steels by laser cladding technology. The microstructure of the coatings was characterized by optical microscopy (OM), scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), electron backscatter diffraction (EBSD), and confocal laser scanning microscopy (CLSM). The hardness and wear resistance of the samples were tested. In the results, all the coatings prepared with different laser powers have no obvious defects, such as pores and cracks, and show the good metallurgical bonding with the substrate. The microstructure of the coatings is mainly consisted of the coarse columnar dendrite at the bottom, the coarse dendritic crystals in the middle, and the fine equiaxed dendrite on the top. The hardness of the coatings (HV 420~510) is significantly higher than that of the substrate (HV 206), and the hardness gradually decreases from the top of coating to the substrate. The samples with the laser power of 1400 W exhibit the smallest and most uniform microstructure, while there are more hard phases (carbides) between dendrites. Therefore, the 1400 W samples exhibit the highest hardness. After the wear experiment testing, all the sample surfaces show the parallel furrows along the sliding direction without the obvious accumulation of debris, which belongs to the abrasive wear mechanism. The samples with the laser power of 1400 W have the lowest friction coefficient, while show the narrowest wear scar width (928.463 μm) and the minimum depth of wear marks (45.087 μm), exhibiting the best wear resistance.
- laser cladding /
- laser power /
- Co-based cemented carbide /
- coatings /
- hardness /
- wear resistance

HTML全文

图 1 不同激光功率下涂层的宏观形貌

Figure 1. Macro-morphology of the coatings under the different laser powers

下载: 全尺寸图片幻灯片

图 2 不同激光功率下涂层底部、中部、顶部微观组织：（a）～（c）1400 W；（d）～（f）2000 W；（g）～（i）2300 W；（j）～（l）2600 W

Figure 2. Microstructure at the bottom, in the middle, and on the top of the coatings under the different laser powers: (a)~(c) 1400 W; (d)~(f) 2000 W; (g)~(i) 2300 W; (j)~(l) 2600 W

下载: 全尺寸图片幻灯片

图 3 图2中白色析出相能谱分析：（a）2000 W；（b）2300 W

Figure 3. EDS tests of the white precipitated phases in Fig.2: (a) 2000 W; (b) 2300 W

下载: 全尺寸图片幻灯片

图 4 不同激光功率下涂层底部、中部、顶部电子背散射衍射分析：（a）～（c）1400 W；（d）～（f）2000 W；（g）～（i）2300 W；（j）～（l）2600 W

Figure 4. EBSD diagrams at the bottom, in the middle, and on the top of the coatings under the different laser powers: (a)~(c) 1400 W; (d)~(f) 2000 W; (g)~(i) 2300 W; (j)~(l) 2600 W

下载: 全尺寸图片幻灯片

图 5 激光熔覆Stellite 6涂层和基体硬度分布

Figure 5. Hardness distribution of the laser cladding Stellite 6 coatings and substrates

下载: 全尺寸图片幻灯片

图 6 涂层摩擦磨损实验：（a）摩擦系数曲线；（b）磨损体积和平均摩擦系数

Figure 6. Friction and wear experiments of the coatings: (a) friction coefficient; (b) wear volume and average friction coefficient

下载: 全尺寸图片幻灯片

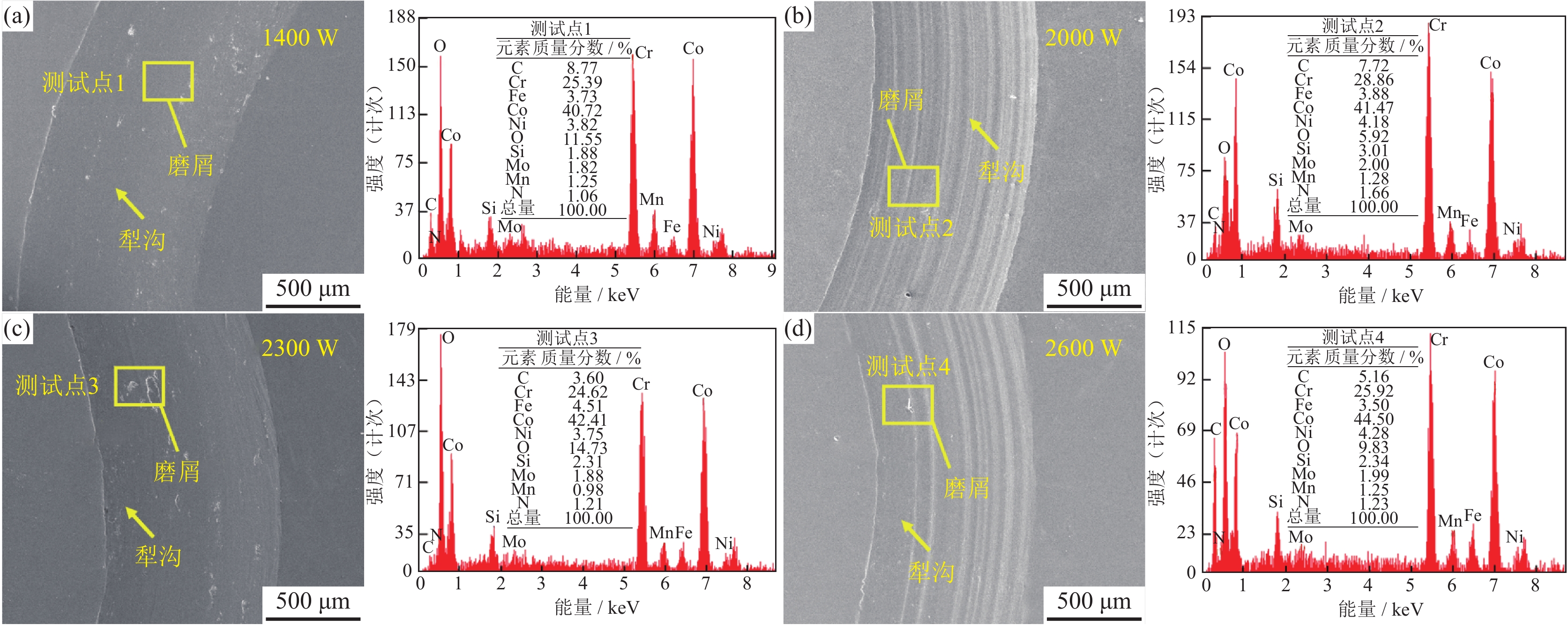

图 7 磨损试样表面形貌和磨损区域能谱分析: （a）1400W；（b）2000W；（c）2300W；（d）2600W

Figure 7. Surface morphology and EDS results of the worn specimens in worn area: (a) 1400W; (b) 2000W; (c) 2300W; (d) 2600W

下载: 全尺寸图片幻灯片

图 8 样品三维形貌与磨损轮廓图：（a）1400W；（b）2000W；（c）2300W；（d）2600W

Figure 8. Three-dimensional wear trajectory and wear profile of the samples: (a) 1400W; (b) 2000W; (c) 2300W; (d) 2600W

下载: 全尺寸图片幻灯片

表 1 基体0Cr17Ni4Cu4Nb不锈钢化学成分（质量分数）

Table 1 Chemical composition of the 0Cr17Ni4Cu4Nb stainless steels %

C	Si	Mn	P	S	Cu	Cr	Ni	Nb	Fe
0.07	1.00	1.00	0.04	0.03	5.00	17.50	5.00	0.45	余量

下载: 导出CSV

表 2 Stellite 6粉末化学成分（质量分数）

Table 2 Chemical composition of the Stellite 6 powders %

C	Si	Mn	P	W	Cr	Ni	Mo	Co
1.15	0.55	0.45	0.04	4.50	29.00	1.50	0.75	余量

下载: 导出CSV

表 3 熔覆层和热影响区的厚度统计

Table 3 Thickness statistics of the cladding layer and heat affected zone

激光功率 / W	熔覆层厚度 / μm	热影响区 / μm
1400	1891.358 ± 8.688	203.951 ±11.981
2000	1970.370 ± 14.340	178.272 ± 13.762
2300	2169.383 ± 8.120	324.938 ± 10.653
2600	2261.728 ± 14.540	373.333 ± 12.502

下载: 导出CSV
